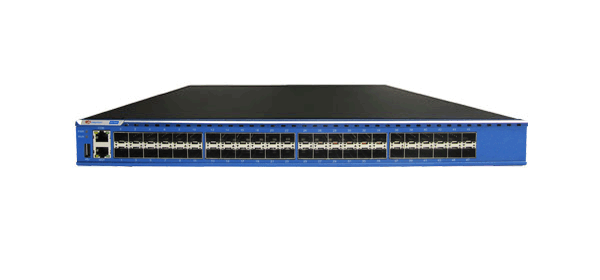

FC7000.B

Connect IDs, location and traffic flows for 2/3/4G networks.FC7000.B Series are 1U device characterized with high-density interface, smaller form factor, low power consumption, high reliability.

  • Overview

  • Feature

FC7000 Series are 1U device characterized with high-density interface, smaller form factor, low power consumption, high reliability. Through FC7000.B, the following are made possible for the mobile networks: DPI (Deep Packet Inspection) analysis, DFI (Dynamic Flow Inspection) analysis, application protocol analysis, network optimization, billing monitoring, network interception, IP user behavior analysis, different network intrusion monitoring, data traffic identification and control, user information association and so on.

•   Mobile networks information association:

It is able to extract the signaling plane information of LTE network S1-MME, S11 and S6a, and associate with S1-U interface user-plane information. Including MSISDN, IMSI, IMEI, GUTI, APN。It can extract the signaling plane information of UMTS network IuPS interface, Gn interface, and associate user plane information. It is able to extract the signaling plane information of CDMA network A11 interface, A10 interface and associate user plane information.

•   Connect IDs, location and traffic flows for 2/3/4G networks:

Supports connect ID and location, supports flow filtering based on ID and location.

•   Intelligent message processing:

The equipment supports IP fragment reassembling, and TCP flow reorder.

•   Decryption:

Supports decrypt S1-MME traffic using key from S6a.
